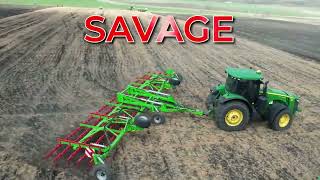

Straw harrow "Savage"

Straw harrow "Savage"

Series BIP / BIN

Information

The perfect machine for aeration of 6-7 cm upper soil layer. Creates conditions for an optimal sowing bed.

Intensive treatment with an extremely rapid rise in soil temperature, to maximally reach the optimum germination conditions.

Equipment

Operating components:

  • 5 rows vibrating tines placed in 61 mm distance;
  • Wire diameter of tine elements 14 mm (16 mm optional).

Securing: Resilient monolithic frame without fixed tine elements without clogging and cause of damage and breakage.

Straw harrow "Savage", BIP / BIN

Technical data

Technical characteristic MountedTrailed
  BIN 014BIN 024BIN 034BIP 40BIP 80BIP 150
Power requirement HP / PS 20 40 50 60 150 200
Working width m 1,4 2,4 3,4 4 (3,8) 8 (7,62) 15 (15,2)
Transport width m 1,57 2,47 3,47 3,00 2,22 2,50
Transport height m 1,09 1,09 1,09 3,86 3,86 3,78
Tranpsort length m 1,31 1,31 1,31 3,4 3,4 8,2
Work bodies - Length of the tine element mm 660 660 660 660 660 660
Work bodies - Number of tine elements pcs. 9 15 21 30 60 120
Work bodies - Distance between tines mm 73 73 73 61 61 61
Operational speed km/h 15 - 25 15 - 25
Working depth cm 6-7 6-7 6-7 6-7 6-7 6-7
Working angles deg 0-27 0-27 0-27 11 - 23 11 - 23 11 - 23
Tire size, chassis  - - front - 16,0 / 70 - 20'' 18PR;
rear - 11,5 / 80 - 15,3'' 16PR
Tractor linkage   3 Point Hitch Cat. I, II, III 3 Point Hitch Cat. I, II, III 3 Point Hitch Cat. I, II, III 3 Point Hitch Cat. II Cat. III Draw bar Ø 50 mm
Main beam profile dimensions mm 80х80 80х80 80х80 150 x 150 150 x 150 200 x 200
Hydraulic adjustment of the depth wheels   no no no no no yes
Machine weight t 0.26 0,32 0,37 0,6 1,4 4,94
